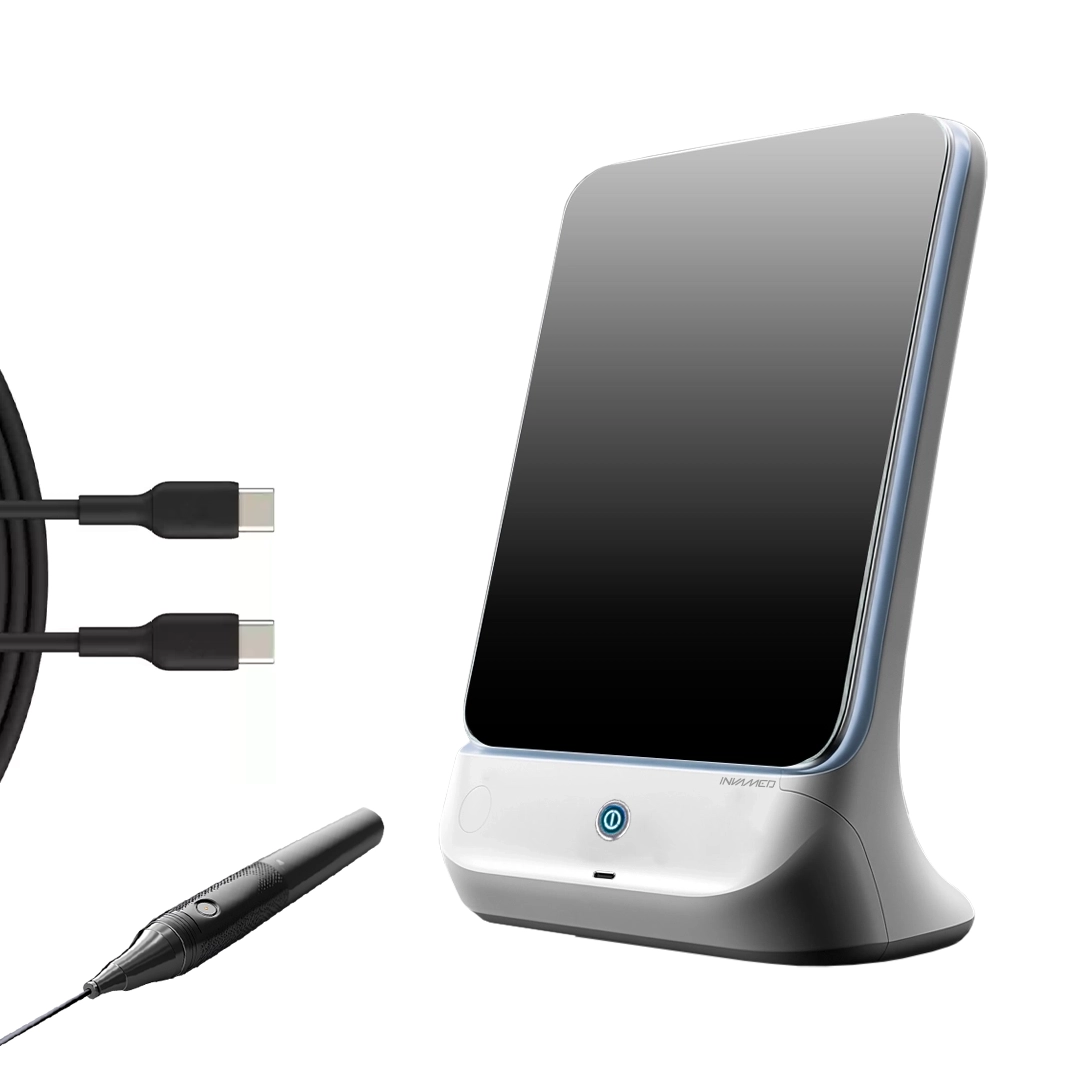

VenoNeedle® Small Vein RF Ablation System

VenoNeedle® Small Vein RF Ablation System

A low-power thermal system aimed at spider veins, telangiectasias, or small reticular varices with precise coagulation, avoiding large incisions or extended downtime.

Information

The ThermoBLOCK® – VenoNeedle® is an RF (radiofrequency) thermal coagulation solution designed to treat small-diameter veins—from 0.3 mm to 0.9 mm—within superficial or dermal vascular networks. By combining a mono-polar stainless steel needle with a high-frequency 4 MHz RF generator, ThermoBLOCK® aims to rapidly eliminate unwanted capillaries, telangiectasias, and minor varicosities with minimal discomfort and quick recovery.

Key Features

Mono-Polar Stainless Steel Needle
  • Ultra-Thin Sizes (0.075 mm–0.15 mm OD): Facilitates precise target penetration while minimizing surrounding tissue damage, especially in facial, hand, or wrist areas.
  • Efficient Heat Delivery: Low-profile design delivers controlled RF energy, swiftly heating the vessel lumen to induce coagulation and closure.
  • Focused Thermal Coagulation: RF energy at 4 MHz penetrates superficially to target small vessels with limited injury to the epidermis or deeper structures.
  • Consistent Vessel Closure: The controlled thermal effect denatures vessel walls, leading to collateral absorption and improved deep venous flow.
  • Power Rating (% Display): Operators can fine-tune RF energy output based on lesion size, vessel diameter, and tissue characteristics.
  • Adjustable Pulse Width: Short, controllable pulses prevent excessive thermal spread, critical in delicate or cosmetically sensitive areas.
  • Operation Time Tracking: Built-in timer logs each session, simplifying monitoring of ablation times and procedure durations.
  • Shot Counter & Audible/Light Warning: Alerts the practitioner to the number of pulses delivered, enhancing safety and procedural accuracy.
  • No Sutures or Tumescent: Usually requires no anesthesia beyond minimal local infiltration or none at all, offering a near pain-free experience.
  • Immediate Vein Closure: Results are often visible immediately, with minimal post-treatment bruising or downtime.

Clinical Advantages & Applications

Small Vessel Varicosities
  • Capillaries & Telangiectasias: Typically 0.3 mm to 0.9 mm in diameter—often found on the face, legs, hands, or arms.
  • Dermal Vascular Stasis: ThermoBLOCK® and VenoNeedle® tackle superficial stasis that can hamper deeper venous flow, encouraging faster perfusion improvement.
  • Fewer Procedure Sessions: Rapid closure of unsightly veins, providing patients with prompt aesthetic satisfaction.
  • No Incisions or Scarring: The fine needle approach avoids surgical incisions, lowering infection risk and scarring potential.
  • Localized Heat Delivery: Minimizes injury to collateral tissues and nerve structures while optimizing vessel occlusion.
  • Real-Time Control: Audible and visual pulses keep operators informed of energy delivery, preventing overtreatment.
  • RF Generator: Lightweight, user-friendly interface for quick calibration of power and pulse duration.
  • Minimal Consumables: Eliminates complex disposables; the stainless steel needle remains stable with repeated use (subject to labeling and sterilization guidelines).

Product Specifications

Specification Detail / Value
Product Name VenoNeedle® Small Vein RF Ablation System
Intended Use Micro-RF or thermal needle-based ablation of spider veins, telangiectasias, small reticular veins
Device Type RF needle or probe with adjustable power and pulse width
Frequency ~4 MHz (typical)
Power Range ~1–15 W (depends on lesion size and system setting)
Needle Gauge ~30–33G (very fine needle)
Needle Lengths 5–20 mm exposed tip (depending on code)
Temperature Control User-adjustable pulse duration or preset thermal cycles
Sterility Sterile, Single Use
Shelf Life ~2–3 years at 15–25 °C
Clinical Indications Aesthetic removal of superficial spider veins, small varicosities
Contraindications Large saphenous trunks, deeply sited varicosities, or patient sensitivity to RF device materials

Ordering & Size Matrix

Needle Gauge Exposed Tip (mm) Power Setting Range Product Code
33G 5 1–10 W THB-TC-33G-5
33G 10 1–10 W THB-TC-33G-10
30G 10 1–15 W THB-TC-30G-10
30G 15 1–15 W THB-TC-30G-15
30G 20 1–15 W THB-TC-30G-20
