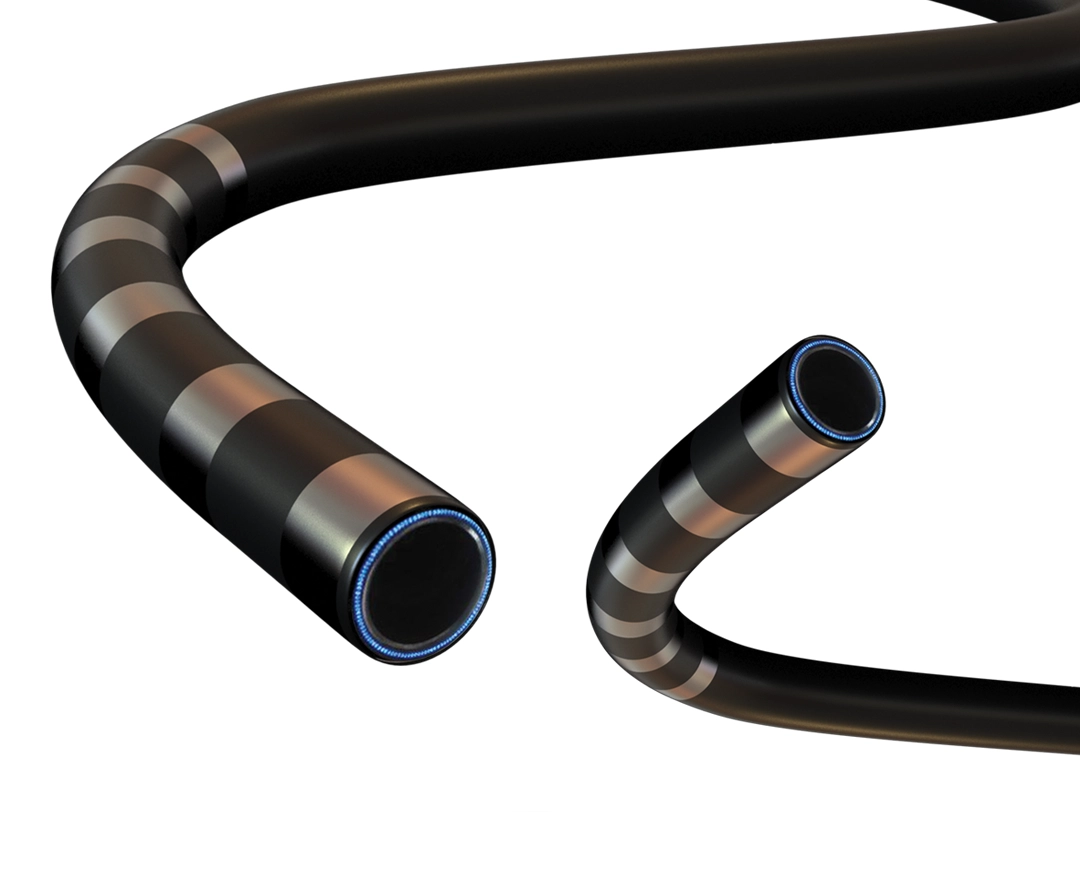

Hero LASER Lead Removal System

Hero LASER Lead Removal System

A laser-based extraction device enabling precise and safe removal of cardiac leads (pacemaker or ICD) in cases of infection, lead malfunction, or upgrades.

Information

Lead Removal with Precision

  • The Hero Laser Lead Removal System stands as a paragon in the realm of lead extraction, offering a perfect blend of precision, safety and efficiency.
  • This innovative system leverages advanced laser technology to navigate through challenging anatomies, cutting through fibrous tissue and adhesions with unparalleled accuracy.

Safe, Efficient, Reliable

  • Designed to be compatible with a wide array of lead sizes and types, the Hero Laser ensures versatility, making it a valuable tool in any cardiac care setting.
  • The system’s precision control over laser settings allows for tailor-made solutions, catering to the unique needs of each patient, and ensuring optimal outcomes.

Transforming Lead Extraction into an Art

  • Equipped with robust safety mechanisms, the Hero Laser Lead Removal System
    minimizes risks associated with lead extraction, providing peace of mind for both the
    practitioner and the patient.
  • The ergonomic design ensures user comfort and ease of handling, further enhancing
    the system’s performance and reliability.
Laser Type: Utilizes advanced laser technology to efficiently cut through fibrous tissue and adhesions.
Compatibility: Designed to work with a variety of lead sizes and types, ensuring versatility.
Safety Features: Equipped with safety mechanisms to minimize risk during lead extraction.
Control: Offers precise control over laser settings, allowing for customization according to patient needs.
Ergonomics: Engineered for user comfort and ease of handling, ensuring optimal performance during procedures.
Power Supply: Consistent and reliable power supply, ensuring uninterrupted operation.

CONTROL
WHEN IT

MATTERS

Flexible pulse repetition rate8

The Hero Laser Lead Removal System sheath allows you to adjust from 20 Hz to 80 Hz based on anatomical and procedural considerations.

The Hero Laser Lead Removal System sets a new standard in lead extraction, combining advanced technology with user-centric design to deliver exceptional results. Precise cutting and wide applicability are ensured due to the system’s advanced laser technology and compatibility with various lead types.

The Hero Laser Lead Removal System sets a new standard in lead extraction, combining advanced technology with user-centric design to deliver exceptional results. Precise cutting and wide applicability are ensured due to the system’s advanced laser technology and compatibility with various lead types.

General Product Specifications

Specification Detail / Value
Product Name Hero LASER Lead Removal System
Intended Use Laser-assisted extraction of cardiac pacing or ICD leads in cases of infection, malfunction, or upgrade
Laser Sheath Material Flexible polymer sheath with integrated laser fiber optics
Laser Wavelength Typically ~308 nm or 355 nm (excimer-based), or near-infrared (adjust as per your design)
Laser Energy Range ~20–60 mJ/mm² per pulse (example)
Sheath Diameter Range 7F–14F (varies by code)
Sheath Working Length Typically 40–65 cm (some systems up to 80 cm)
Compatible Guidewire/Locking Stylet Usually 0.018” or specialized locking stylet (for lead traction)
Laser Console Interface Proprietary or universal laser generator control (confirm final specification)
Maximum Output Rate ~25–80 pulses/second (example)
Sterility Sterile (Ethylene Oxide)
Single Use Yes
Shelf Life 2–3 years if stored unopened at 15–25 °C
Operating Temperature 15–25 °C recommended
Clinical Indications Chronically implanted pacing or defibrillator lead removal due to infection, damage, or system revision
Contraindications Highly fibrotic leads unresponsive to laser; insufficient venous or vascular access; etc.

7F–9F Laser Sheath Range

French Size Working Length (cm) Laser Fiber Spec Product Code Notes
7F 40 308 nm / 25 mJ/mm² HLR-7F-40-308-25 Shorter length for leads near subclavian approach
7F 50 308 nm / 25 mJ/mm² HLR-7F-50-308-25 Medium length, standard energy
7F 60 308 nm / 30 mJ/mm² HLR-7F-60-308-30 Higher energy setting, extended length
9F 40 355 nm / 20 mJ/mm² HLR-9F-40-355-20 Larger ID to accommodate thicker or double-coiled leads
9F 50 355 nm / 30 mJ/mm² HLR-9F-50-355-30 Medium length, mid-range energy
9F 65 355 nm / 40 mJ/mm² HLR-9F-65-355-40 Extended length for deeply implanted leads

10F–12F Laser Sheath Range

French Size Working Length (cm) Laser Fiber Spec Product Code Notes
10F 40 308 nm / 30 mJ/mm² HLR-10F-40-308-30 For moderate fibrotic attachments, short approach
10F 50 308 nm / 40 mJ/mm² HLR-10F-50-308-40 Medium length, higher energy laser
10F 60 308 nm / 50 mJ/mm² HLR-10F-60-308-50 Extended approach for more complicated lead positions
12F 50 355 nm / 40 mJ/mm² HLR-12F-50-355-40 Larger ID to handle thick or ICD leads, standard length
12F 60 355 nm / 50 mJ/mm² HLR-12F-60-355-50 Extended for leads anchored in mid RA or SVC area
12F 65 355 nm / 60 mJ/mm² HLR-12F-65-355-60 Maximum energy, deeper seating for severe fibrous tissue

14F Laser Sheath Range

French Size Working Length (cm) Laser Fiber Spec Product Code Notes
14F 50 308 nm / 40 mJ/mm² HLR-14F-50-308-40 For very large leads or extensive fibrous attachments
14F 60 308 nm / 50 mJ/mm² HLR-14F-60-308-50 Extended length, high energy for complex extractions
14F 65 308 nm / 60 mJ/mm² HLR-14F-65-308-60 Maximum length & energy for the toughest leads
