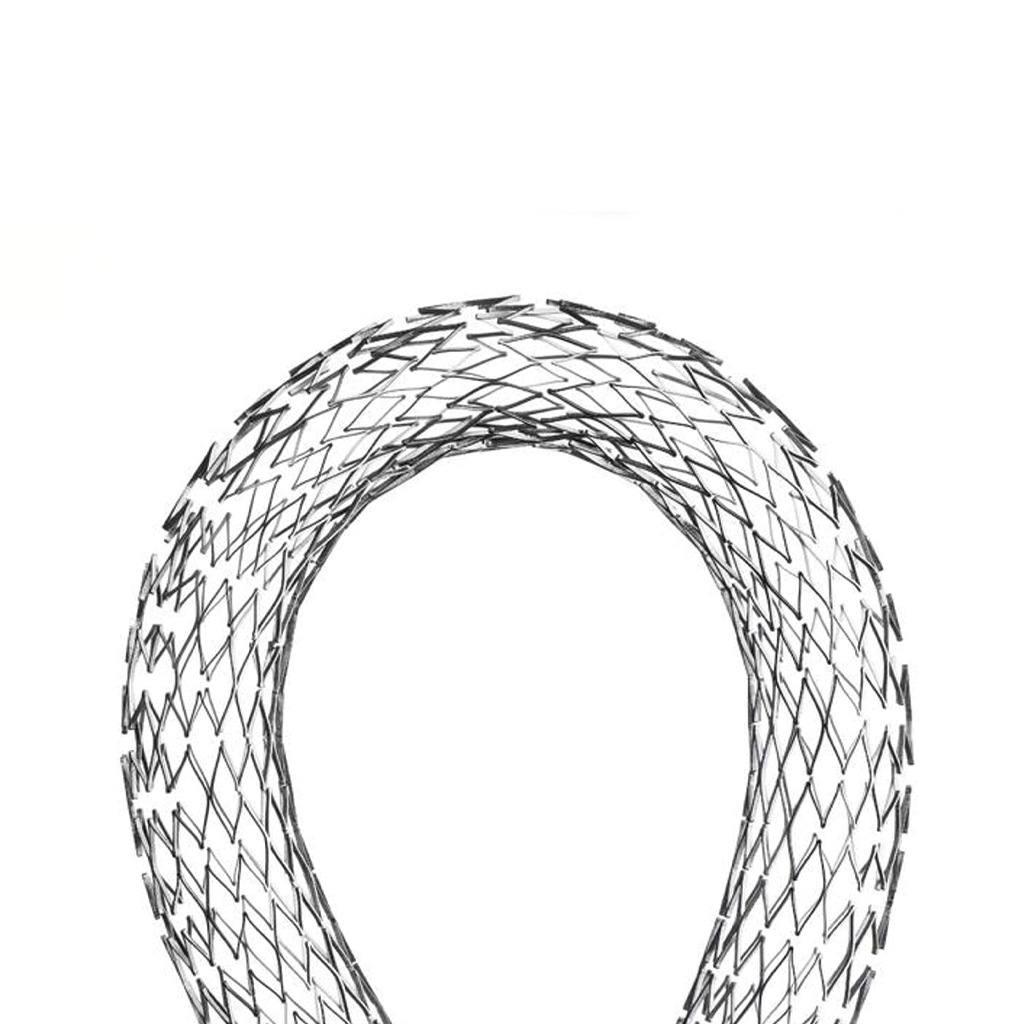

Atlas Peripheral Stent System

A robust peripheral stent platform designed for femoral, iliac, or popliteal lesions, ensuring adequate radial support and low restenosis rates in PAD interventions.

A New Standard for Treating Peripheral Artery Diseases

  • Vessel diameters 5 mm – 8 mm for use in lesions at high risk of sudden or threatened closure following PTA or lesions at high risk of restenosis following PTA in the common iliac, external iliac, superficial femoral,
    proximal popliteal or subclavian arteries.
  • Indicated for the improvement of luminal diameters ranging from 20 mm to 200 mm in length for accurate and controlled stent placement.

It Provides Better Blood Flow and Better Quality of Life

  • The Atlas Peripheral Stent is a laser-cut peripheral stent designed for use in the iliac arteries.
  • The stent is made of a nitinol alloy and is available in a variety of sizes to accommodate different vessel diameters.

It is Safer Than Traditional Open Surgery

  • Consists of two components: Implantable endoprosthesis and stent delivery system.
    This stent is a self-expanding stent composed of nickel titanium alloy (Nitinol).
  • The stent is sandwiched within a 6F (2.1 mm maximum outer diameter) delivery system.
  • It has a triaxial design with an outer shaft that stabilizes the stent delivery system, a
    middle shaft that protects and holds the stent between 2 radiopaque markers, and an
    inner shaft that provides a guidewire lumen.
  • The delivery system is compatible with 0.035 in (0.89 mm) guidewires.

Trustworthy Performance

  • 6F profile
  • 0.035” guide wire compatibility
  • Three-axis shaft design
  • 80 cm and 120 cm catheter lengths
  • Pull-back delivery system

FLEXIBLE IN STRUCTURE SUITABLE FOR ALL CONFIGURATIONS

General Product Specifications

Specification Detail / Value
Product Name Atlas Peripheral Stent System
Stent Type Self-Expanding or Balloon-Expandable (confirm actual design), primarily for femoral, popliteal, or iliac usage
Material Medical-grade Nitinol (if self-expanding) or Cobalt-Chromium/Stainless Steel (if balloon-expandable)
Nominal Stent Diameter Range Typically 4–10 mm (depending on the vessel size—femoral, iliac, etc.)
Stent Length Range 20–200 mm (varies widely for peripheral coverage)
Delivery System Over-the-wire (OTW) or Rapid-Exchange (RX)—check your product specifics
Recommended Guidewire Usually 0.035” (for superficial femoral, iliac) or 0.018” (for BTK usage)
Sheath Compatibility 6–9F (depending on stent diameter/length)
Deployment Mechanism Pull-back sheath (self-expanding) or balloon-based expansion (balloon-expandable stent)
Sterility Sterile (Ethylene Oxide)
Single Use Yes
Shelf Life ~2–3 years in original sealed packaging, at 15–25 °C
Clinical Indications Peripheral artery disease (PAD), SFA lesions, iliac occlusive disease, or popliteal stenoses
Contraindications Chronic total occlusion with heavy calcification (unless combined with atherectomy), severely small vessel diameters, etc.

Atlas Peripheral Stent System

Stent Dia (mm) Stent Length (mm) Sheath Rec. (F) Product Code Notes
4.0 20 6F ATLS-PS-4.0x20 Short stent, smaller vessels (popliteal or BTK)
4.0 40 6F ATLS-PS-4.0x40
4.0 60 6F ATLS-PS-4.0x60
5.0 20 6F ATLS-PS-5.0x20 Common femoral or distal SFA segments
5.0 80 7F ATLS-PS-5.0x80 Extended coverage for moderate lesions
5.0 120 7F ATLS-PS-5.0x120
6.0 40 7F ATLS-PS-6.0x40 SFA or proximal popliteal usage
6.0 80 7F ATLS-PS-6.0x80 Medium length for multi-segment coverage
6.0 120 7F ATLS-PS-6.0x120 Long stent for extensive SFA disease
6.0 150 7F ATLS-PS-6.0x150
7.0 40 7F or 8F ATLS-PS-7.0x40 Larger diameter for iliac or big SFA segments
7.0 80 7F or 8F ATLS-PS-7.0x80
7.0 120 7F or 8F ATLS-PS-7.0x120
7.0 150 8F ATLS-PS-7.0x150
8.0 40 8F ATLS-PS-8.0x40 Common for external iliac or large SFA
8.0 80 8F ATLS-PS-8.0x80
8.0 120 8F ATLS-PS-8.0x120
8.0 150 8F ATLS-PS-8.0x150
8.0 200 8F ATLS-PS-8.0x200 Longest coverage for full segment occlusions
9.0 40 8F ATLS-PS-9.0x40 Large diameter stent for big iliac vessel
9.0 80 8F ATLS-PS-9.0x80
9.0 120 8F ATLS-PS-9.0x120
10.0 40 8F or 9F ATLS-PS-10.0x40 Largest typical diameter for peripheral stents
10.0 80 9F ATLS-PS-10.0x80
10.0 120 9F ATLS-PS-10.0x120
10.0 150 9F ATLS-PS-10.0x150
