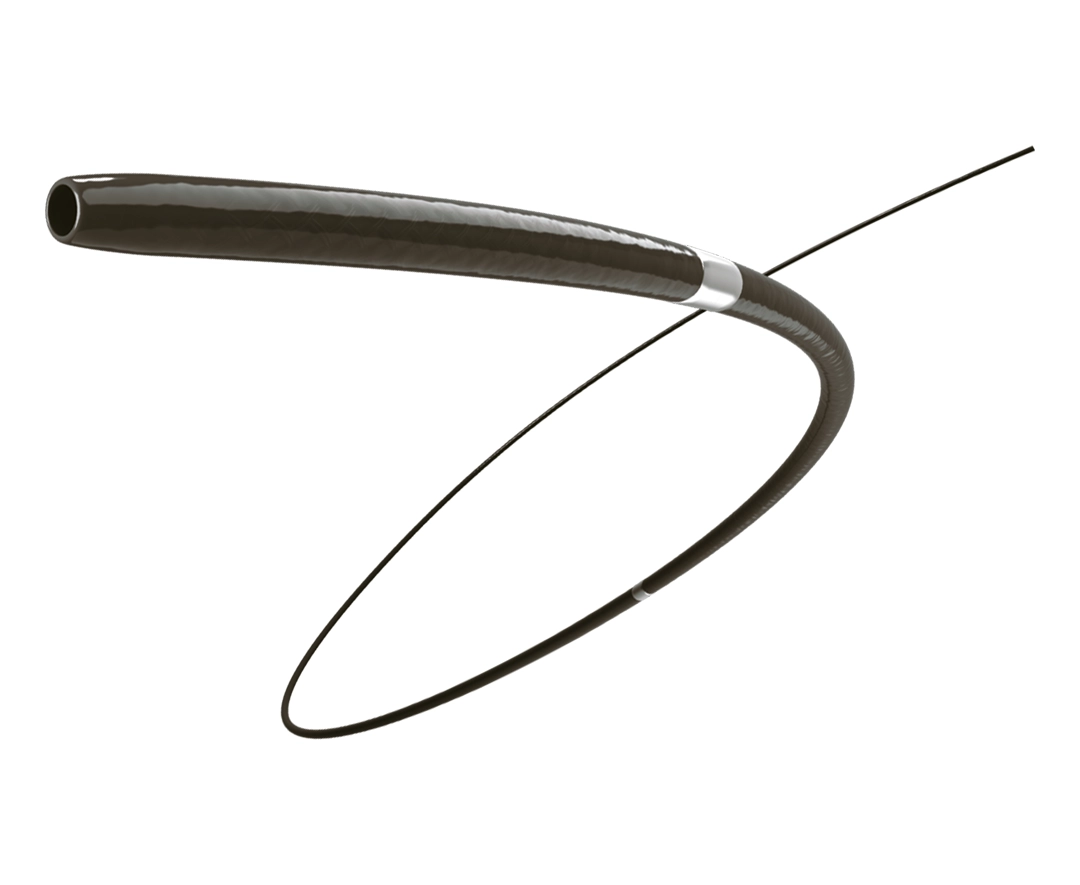

Dolphin PRO Low Profile Crossing Support Catheter
A low-profile crossing catheter with enhanced pushability and trackability, designed for tight or heavily calcified lesions in either coronary or peripheral arteries.
The Dolphin® Pro Low Profile Crossing Support Catheter developed by Invamed, a global medical device manufacturer—is designed for precise and efficient guidewire support in complex vascular interventions. Built to navigate tight or tortuous anatomies, this low-profile catheter integrates three radiopaque markers along the distal shaft, enabling improved positional awareness and accurate lesion crossing in both peripheral arteries.
Triple Marker System
- Three strategically placed markers along the distal segment enhance fluoroscopic visibility, facilitating precise depth and orientation checks when crossing tough occlusions.
Low-Profile Construction
- Optimized for smaller vessel diameters or micro-channel crossing, reducing friction and minimizing vessel trauma.
High Pushability & Torque
- Braided or coiled shaft provides robust support while retaining flexibility, ensuring stable guidewire manipulation through heavily calcified or occluded segments.
Multi-Use Applications
- Ideal for peripheral artery disease (PAD) or complex coronary lesion crossing, offering consistent performance in subintimal or luminal track approaches.
General Product Specifications
Specification | Detail / Value |
Product Name | Dolphin PRO Low Profile Crossing Support Catheter |
Intended Use | Facilitates wire crossing in complex or chronic total occlusion (CTO) lesions, primarily in smaller or distal vessels |
Catheter Design | Ultra-low profile shaft, possible braided or coiled backbone for torque and push, hydrophilic coating (if applicable) |
Material | Pebax/Polyamide with stainless steel or nitinol reinforcement |
Outer Diameter Range | ~1.8–2.3 Fr (depending on model) |
Inner Lumen | Typically 0.014” wire compatibility |
Working Length | ~80–150 cm, depending on specific code |
Tip Configuration | Tapered or angled tip, radiopaque distal marker |
Marker Bands | 1–2 marker bands near the distal end for precise fluoroscopic visualization |
Sheath Compatibility | Typically 4F or smaller introducer (due to low-profile design) |
Sterility | Sterile (Ethylene Oxide) |
Single Use | Yes |
Shelf Life | ~2–3 years if stored in sealed packaging at 15–25 °C |
Clinical Indications | Complex lesion crossing in smaller or distal vessels (BTK arteries, small coronaries, etc.), fine device support |
Contraindications | Extremely calcified or tortuous anatomies beyond safe manipulation, known device material allergies |
Dolphin PRO Low Profile
Fr Size | Working Length (cm) | Tip Style | Product Code | Notes |
1.8 Fr | 80 | Straight | DLP-1.8-80-ST | Ultra-low OD for very small vessels or subintimal approaches |
1.8 Fr | 80 | Tapered | DLP-1.8-80-TP | Tapered tip for crossing tight CTO caps |
1.8 Fr | 100 | Straight | DLP-1.8-100-ST | Longer length for distal BTK or small coronary tracks |
2.0 Fr | 80 | Angled | DLP-2.0-80-AN | Slightly bigger OD, angled tip for branch approach |
2.0 Fr | 100 | Straight | DLP-2.0-100-ST | Balanced push + track in small peripheral arteries |
2.0 Fr | 135 | Tapered | DLP-2.0-135-TP | Extended length for multi-segment crossing |
2.2 Fr | 80 | Straight | DLP-2.2-80-ST | Enhanced lumen for 0.014” wire plus small device passage |
2.2 Fr | 100 | Angled | DLP-2.2-100-AN | Angled tip for difficult side branches |
2.2 Fr | 135 | Tapered | DLP-2.2-135-TP | Tapered distal tip + long working length |
2.3 Fr | 135 | Straight | DLP-2.3-135-ST | Largest OD in the low-profile series, for moderate vessel size |
2.3 Fr | 150 | Tapered | DLP-2.3-150-TP | Maximum length in low-profile design |
