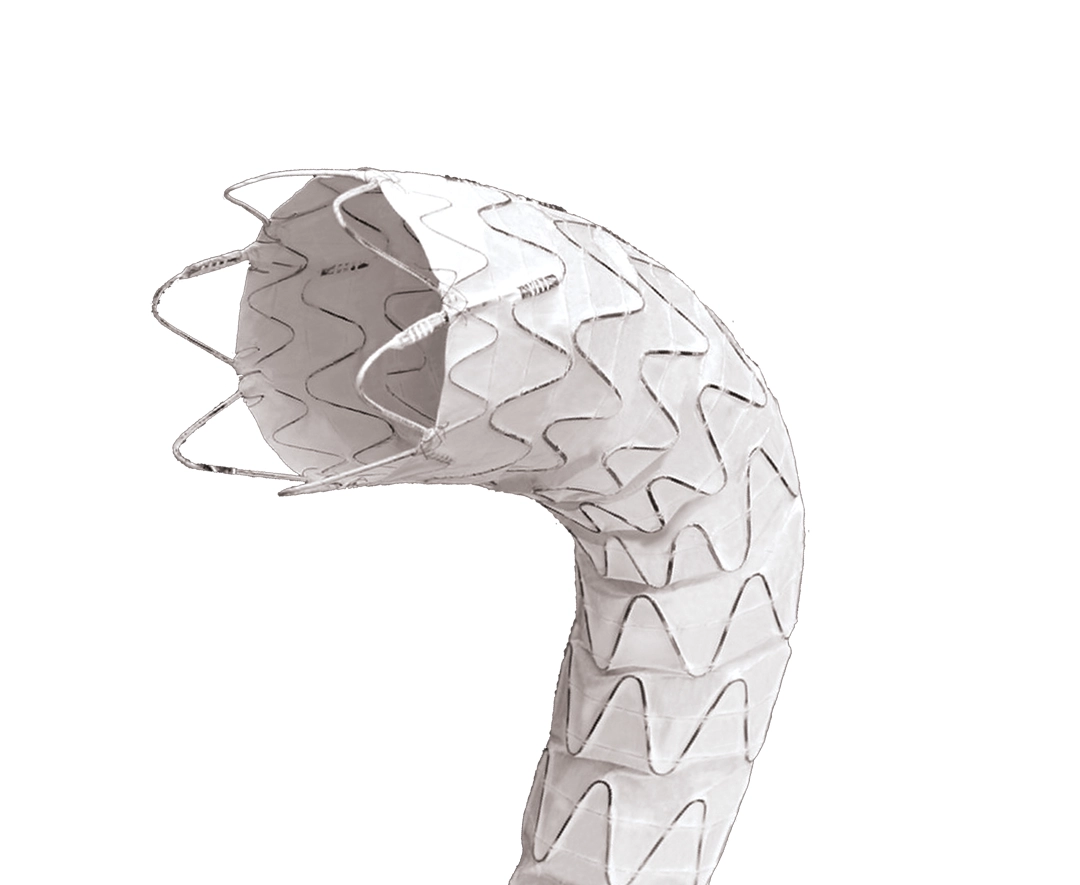

Atlas Coronary Stent Graft System

A covered coronary stent system providing extraluminal sealing in perforations or pseudoaneurysms, maintaining coronary patency while preventing extravasation.

Optimal Stent Graft Surface Area During Procedures

  • Precision-engineered to provide immediate vessel supporting the unique challenges of coronary artery disease.
  • Combines the mechanical support of a stent with the biological function of a graft, offering optimal performance in complex procedures.

Designed to Manage

  • Reduces the risk of restenosis while ensuring minimal thrombogenicity, backed by comprehensive clinical data.
  • Facilitates precise placement with superior radiopacity and a streamlined delivery system, guaranteeing confidence in deployment for physicians.
  • Advanced flexibility and conformability ensure a snug fit in tortuous coronary anatomies.

Restoring Blood Flow with ePTFE Material

  • ePTFE is a highly biocompatible material.
  • Non-stick properties of ePTFE  help reducing the risk of
    blood clots forming on the surface of the graft.
  • The ePTFE material is created with a porous structure, which allows
    for tissue ingrowth.
  • The patient’s own tissue can grow into the graft, helping to stabilize it.
  • Material: Crafted from a state-of-the-art biocompatible ePTFE and a high-strength CoCr, ensuring longevity and stability.
  • Diameter: Ranging from 2.8 mm to 4.8 mm, providing options for various patient needs.
  • Length: Available from 18 mm to 29 mm, accommodating different arterial sizes.
  • Cell Design: Innovatively engineered cell structure delivers exceptional radial strength and flexibility, ensuring the stent conforms securely to the arterial wall.
  • Delivery System: Advanced delivery mechanism ensures precise deployment, easy navigation, and reduced procedure time, enhancing overall surgical efficiency.

FIRST CHOICE

DUE TO
FLEXIBILITY

& RESISTANCE

General Product Specifications

Specification Detail / Value
Product Name Atlas Coronary Stent Graft
Stent Type Covered coronary stent (e.g., PTFE/ePTFE or similar covering)
Base Material Cobalt-Chromium or Stainless Steel alloy (depending on final variant)
Stent Design Balloon-expandable with integrated graft covering, typically for perforations or pseudoaneurysm repair
Cover Material ePTFE or PTFE-based membrane over stent scaffold
Strut Thickness ~80–100 μm (base metal struts)
Nominal Pressure (NP) ~8–9 atm
Rated Burst Pressure (RBP) ~14–16 atm
Delivery System Rapid-Exchange (RX) or Over-the-Wire (OTW); ~140 cm shaft
Guidewire Compatibility 0.014”
Indications Coronary perforations, pseudoaneurysms, bailout stent usage
Contraindications Lesions with excessive tortuosity/calcification beyond feasibility; known alloy allergies
Sterility Sterile (EO)
Single Use Yes
Shelf Life 2–3 years (based on covering stability)
Operating Temperature 15–25 °C recommended storage

Detailed Size-Based Ordering & Product Codes

Stent Diameter (mm) Stent Length (mm) Nominal Pressure (atm) RBP (atm) Product Code
2.50 12 8 14 ATLS-CG-2.50x12
2.50 15 8 14 ATLS-CG-2.50x15
2.50 18 9 16 ATLS-CG-2.50x18
2.50 20 9 16 ATLS-CG-2.50x20
2.50 24 9 16 ATLS-CG-2.50x24
2.50 28 9 16 ATLS-CG-2.50x28
2.50 32 9 16 ATLS-CG-2.50x32
2.50 38 9 16 ATLS-CG-2.50x38
2.75 12 8 14 ATLS-CG-2.75x12
2.75 15 8 14 ATLS-CG-2.75x15
2.75 18 9 16 ATLS-CG-2.75x18
2.75 20 9 16 ATLS-CG-2.75x20
2.75 24 9 16 ATLS-CG-2.75x24
2.75 28 9 16 ATLS-CG-2.75x28
2.75 32 9 16 ATLS-CG-2.75x32
2.75 38 9 16 ATLS-CG-2.75x38
3.00 12 8 14 ATLS-CG-3.00x12
3.00 15 8 14 ATLS-CG-3.00x15
3.00 18 9 16 ATLS-CG-3.00x18
3.00 20 9 16 ATLS-CG-3.00x20
3.00 24 9 16 ATLS-CG-3.00x24
3.00 28 9 16 ATLS-CG-3.00x28
3.00 32 9 16 ATLS-CG-3.00x32
3.00 38 9 16 ATLS-CG-3.00x38
3.50 12 8 14 ATLS-CG-3.50x12
3.50 15 8 14 ATLS-CG-3.50x15
3.50 18 9 16 ATLS-CG-3.50x18
3.50 20 9 16 ATLS-CG-3.50x20
3.50 24 9 16 ATLS-CG-3.50x24
3.50 28 9 16 ATLS-CG-3.50x28
3.50 32 9 16 ATLS-CG-3.50x32
3.50 38 9 16 ATLS-CG-3.50x38
4.00 12 8 14 ATLS-CG-4.00x12
4.00 15 8 14 ATLS-CG-4.00x15
4.00 18 9 16 ATLS-CG-4.00x18
4.00 20 9 16 ATLS-CG-4.00x20
4.00 24 9 16 ATLS-CG-4.00x24
4.00 28 9 16 ATLS-CG-4.00x28
4.00 32 9 16 ATLS-CG-4.00x32
4.00 38 9 16 ATLS-CG-4.00x38
