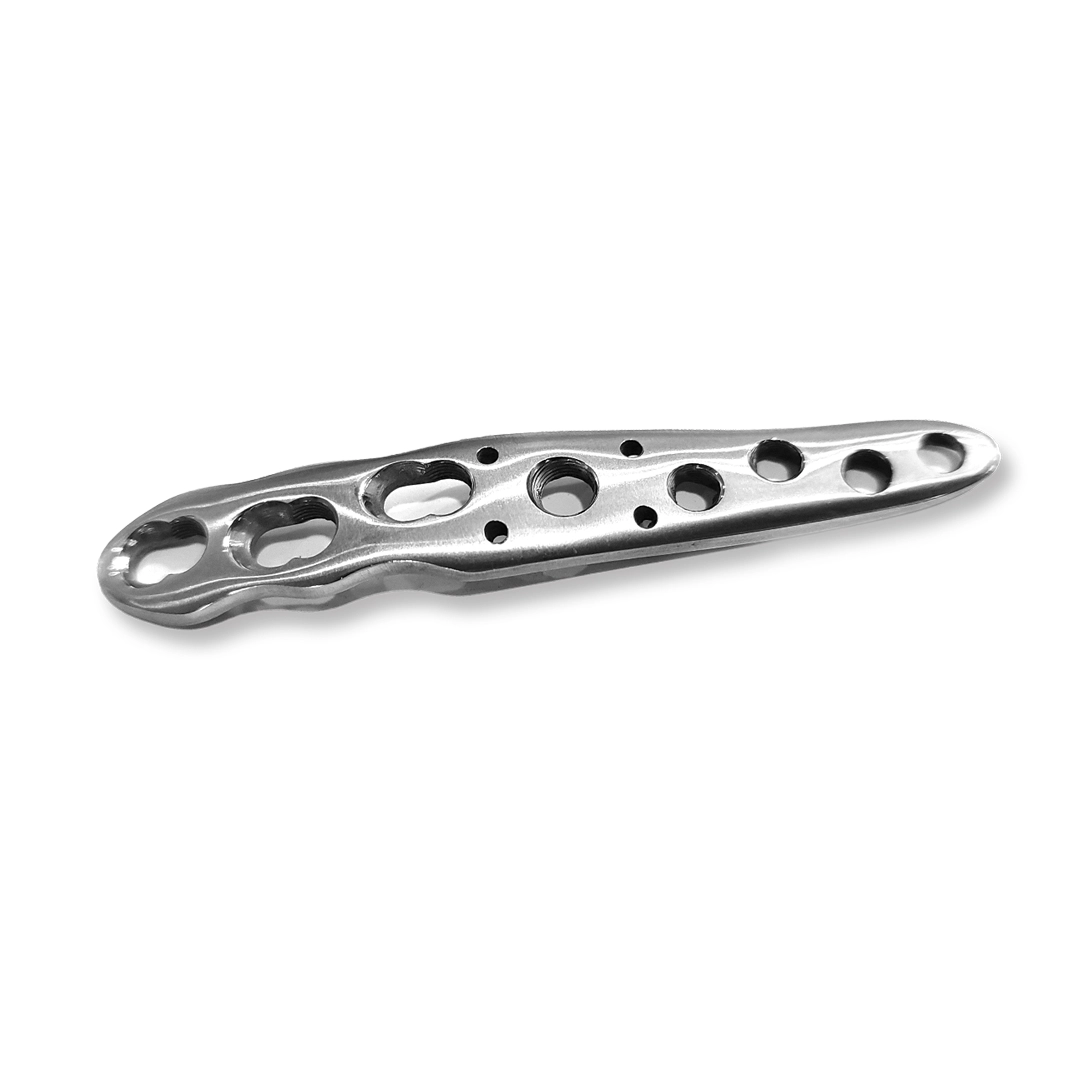

CytroFIX® Clavicle Anterior Medial Plate System (All-Titanium Construction)
Delivering Excellence in Clavicle Fracture Fixation with High-Purity Titanium
The CytroFIX® Clavicle Anterior Medial Plate System, under the Cytronics orthopedic brand by INVAMED, provides a meticulously engineered solution for anterior-medial clavicle fracture fixation. Constructed exclusively from high-purity titanium—renowned for its biocompatibility, corrosion resistance, and lightweight strength—this plate system optimizes patient comfort and healing outcomes. Its low-profile design follows clinical insights to fit the clavicle’s anatomy while addressing diverse fracture patterns.
Pure Titanium Alloy
Fabricated from a top-tier, medical-grade titanium (e.g., Ti-6Al-4V ELI), offering superior structural integrity and compatibility.
Anatomical Contour
Conforms to the anterior-medial clavicle surface to ensure minimal soft-tissue irritation and accurate fracture reduction.
Low-Profile Geometry
Reduces hardware prominence while retaining biomechanical stability for various clavicle fracture morphologies.
Variable Screw Options
Accommodates locking or non-locking titanium screws, with optional variable-angle locking for complex fracture fixation.
Indications
Medial or midshaft clavicle fractures requiring stable anterior plating; osteotomy revisions, nonunion scenarios in the anterior-medial region.
Contraindications
Inadequate bone quality for secure screw purchase, active infection at the surgical site, or patient conditions precluding surgery.
Technical Specifications
Specification | Detail / Value |
Product Name | CytroFIX® Clavicle Anterior Medial Plate System |
Material | Highest-Purity Titanium Alloy (e.g., Ti-6Al-4V ELI) |
Plate Profile | Low-profile, anatomically contoured for anterior-medial clavicle region |
Locking Mechanism | Locking or non-locking titanium screws (variable-angle locking optional) |
Screw Diameter | 2.7 mm or 3.5 mm (titanium cortical screws) |
Plate Thickness | ~2.0–2.5 mm (slim design to reduce prominence) |
Hole Configuration | Multiple hole arrays for bridging or compression strategies |
Radiopacity | Titanium visible under standard fluoroscopy (radio-opaque markers optional) |
Sterility | Non-sterile on delivery (to be autoclaved) or sterile if specified |
Shelf Life | Indefinite if stored properly; reusable subject to recommended inspection cycles |
Clinical Indications | Clavicle fractures (medial/midshaft) necessitating anterior plate fixation, osteotomy corrections |
Regulatory Compliance | Conforms to ISO 13485, CE/FDA (region-specific) for orthopedic trauma implants |
Size & Ordering Matrix
Plate Length (mm) | Hole Count | Plate Curvature | Compatible Screw | Product Code | Notes |
60 | 4 | Mild Anterior Bend | 2.7 mm Locking/Non-Locking | CFX-CAM-60-4-27-Ti | Short plate for smaller fractures, titanium screws only |
70 | 5 | Mild Anterior Bend | 2.7 mm Locking/Non-Locking | CFX-CAM-70-5-27-Ti | Extended coverage for mild to moderate fractures |
80 | 5 | Moderate Anterior Bend | 2.7 or 3.5 mm Locking | CFX-CAM-80-5-MX-Ti | Bridges midshaft fractures, variable angle holes optional |
90 | 6 | Moderate Anterior Bend | 3.5 mm Locking/Non-Locking | CFX-CAM-90-6-35-Ti | Suited for larger or multi-fragment fractures |
100 | 7 | Enhanced Curvature | 3.5 mm Locking/Non-Locking | CFX-CAM-100-7-35-Ti | For complex or long fracture lines |
110 | 8 | Enhanced Curvature | 3.5 mm Locking/Non-Locking | CFX-CAM-110-8-35-Ti | Longest plate for challenging multi-segment fractures |
