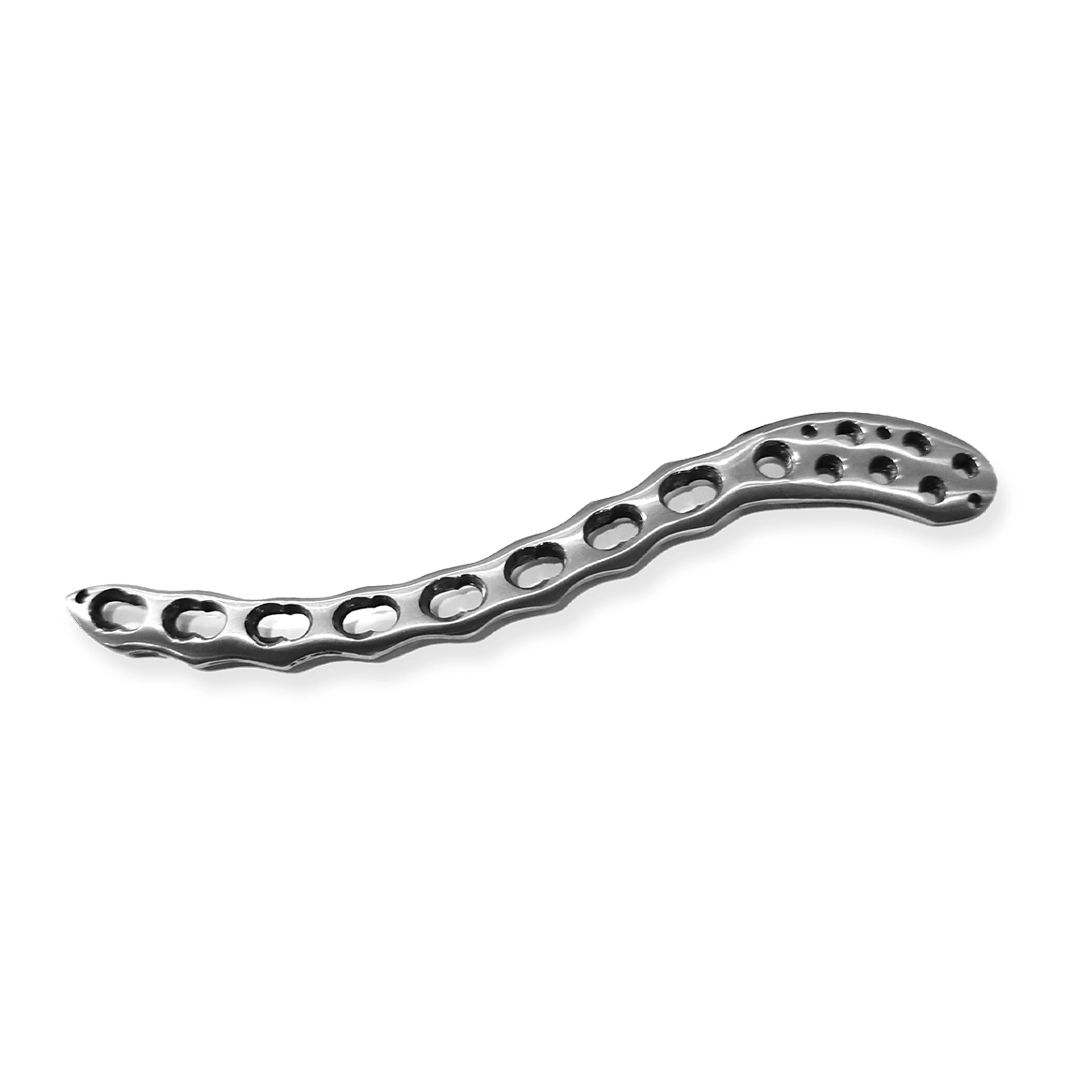

CytroFIX® Clavicle Anterior Medial Plates with Lateral Extension
High-Purity Titanium Constructs for Superior Clavicle Fracture Fixation
The CytroFIX® Superior Clavicula Plates by Cytronics (an INVAMED orthopedic brand) are meticulously engineered for superior approach fixation of clavicle fractures. Exclusively manufactured from high-purity titanium, these plates deliver robust stabilization, anatomical fit, and minimal soft tissue irritation. Whether addressing acute fractures, malunions, or osteotomies, these low-profile implants ensure reliable outcomes in surgical management of the clavicle.
Anatomically Shaped
Engineered curvature aligns with the superior aspect of the clavicle to optimize bone contact and reduce hardware prominence.
High-Purity Titanium
Offers exceptional strength-to-weight ratio, biocompatibility, and corrosion resistance—ideal for fracture healing.
Low-Profile Geometry
Minimizes implant palpability while maintaining rigidity for diverse fracture patterns.
Locking & Non-Locking Screw Options
Multi-hole design accommodates both locking and non-locking titanium screws, with variable-angle locking for complex fractures.
Broad Clinical Utility
Suitable for acute midshaft or lateral third fractures requiring a superior plating approach, as well as revision surgeries or nonunion fixation.
Contraindications
Severe bone defects limiting fixation potential, active infection at the surgical site, patient conditions precluding surgery.
Technical Specifications
Specification | Detail / Value |
Product Name | CytroFIX® Superior Clavicula Plates |
Material | High-Purity Titanium Alloy (e.g., Ti-6Al-4V ELI) |
Plate Profile | Low-profile, contoured for superior clavicle placement |
Locking Mechanism | Locking or non-locking titanium screws; optional variable-angle locking |
Screw Diameter | 2.7 mm or 3.5 mm (titanium cortical screws, depending on hole specification) |
Plate Thickness | ~2.0–2.5 mm (minimized profile) |
Hole Array | Multiple holes for bridging, compression, or combined fixation patterns |
Radiopacity | Titanium visible on fluoroscopy (optional etched markers) |
Sterility | Provided non-sterile (autoclavable) or sterile, single use or reusable instrumentation (verify product line) |
Shelf Life | Indefinite if stored properly; reusable within recommended inspection cycles |
Clinical Indications | Midshaft/lateral clavicle fractures requiring superior plating, osteotomies, nonunion correction |
Regulatory Compliance | Conforms to ISO 13485, CE/FDA (region-specific), meets orthopedic implant standards |
Size & Ordering Matrix
Plate Length (mm) | Hole Count | Curvature | Compatible Screw | Product Code | Notes |
60 | 4 | Mild Superior Bend | 2.7 mm Locking/Non-Locking | CFX-SCL-60-4-27-Ti | Shorter plate for smaller fractures in lateral or mid-shaft |
70 | 5 | Mild Superior Bend | 2.7 mm Locking/Non-Locking | CFX-SCL-70-5-27-Ti | Extended coverage for mild to moderate fractures |
80 | 5 | Moderate Superior Bend | 2.7 or 3.5 mm Locking | CFX-SCL-80-5-MX-Ti | Bridges midshaft fractures with variable-angle options |
90 | 6 | Moderate Superior Bend | 3.5 mm Locking/Non-Locking | CFX-SCL-90-6-35-Ti | For larger or multi-fragment fractures requiring robust support |
100 | 7 | Enhanced Superior Contour | 3.5 mm Locking/Non-Locking | CFX-SCL-100-7-35-Ti | Accommodates more complex or extended fracture lines |
110 | 8 | Enhanced Superior Contour | 3.5 mm Locking/Non-Locking | CFX-SCL-110-8-35-Ti | Longest plate design for challenging multi-segment fractures |
